Installer System Configuration

The BrickStor SP installer provides several options to configure and/or troubleshoot the system which BrickStor SP is being installed. Options can be accessed from the boot screen menu. On the main screen, use arrow keys to switch between menu options and press Enter key to select it. To return to the previous selection or to cancel, press Escape key.

Management Network Interface

BrickStor SP installer requires network access to complete installation. To configure the management network interface IP address or change DNS servers select Mgt Interface from the installer boot screen which will allow configuring management interface.

Use Tab key to navigate between the menu selections and Space or Enter key to select it. Once finished with inputs click Save to apply changes and return to the main menu.

By default, the installer configures a single network interface with a dynamic IP address (DHCP).

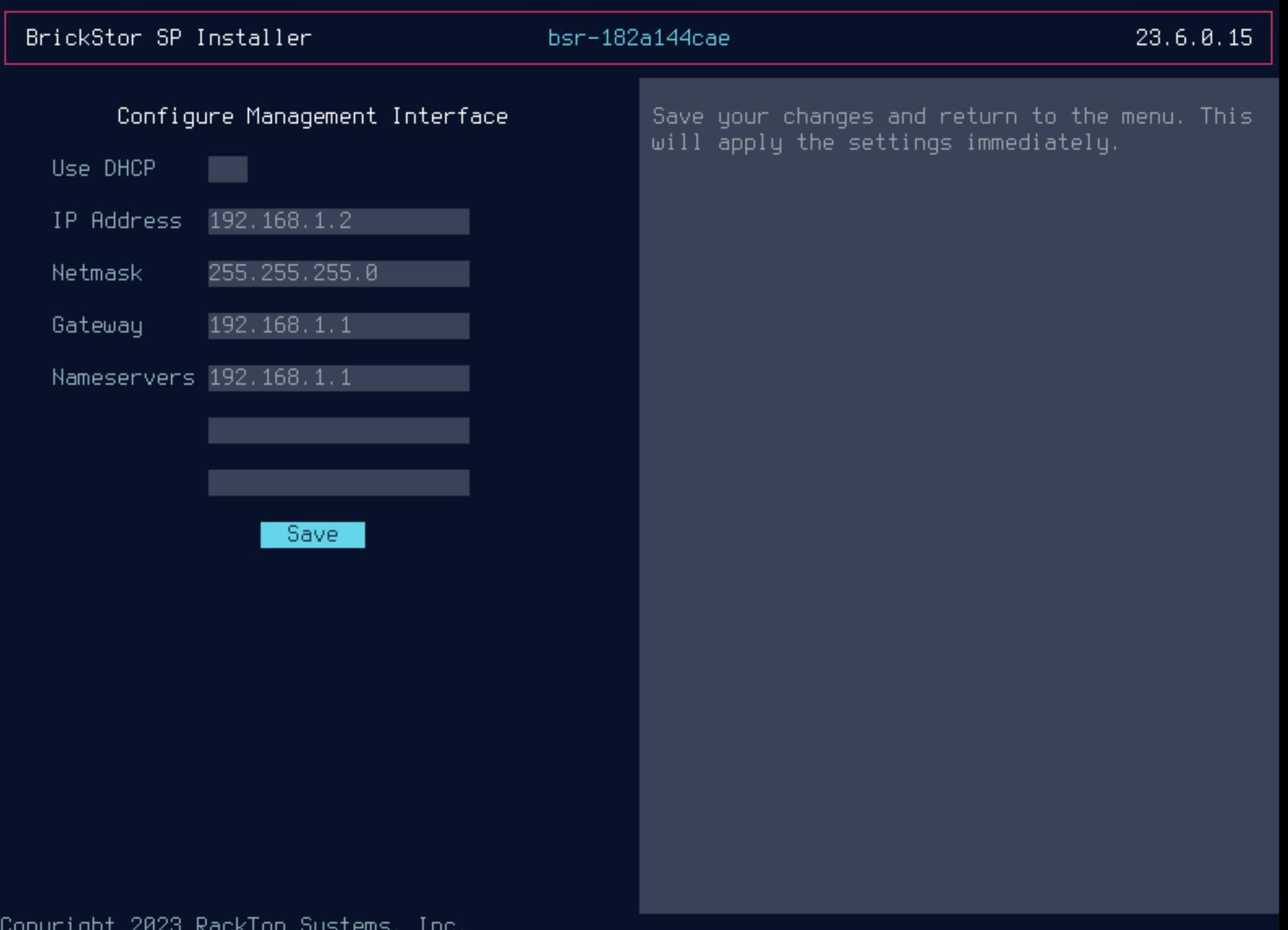

Installer network settings

Support Shell

Support shell option allows dropping into the command line interface to troubleshoot system on which BrickStor SP is to be installed.

To return to the installer from the support shell type exit and press the Enter key.

Reboot

Reboot option will immediately reboot the system.
