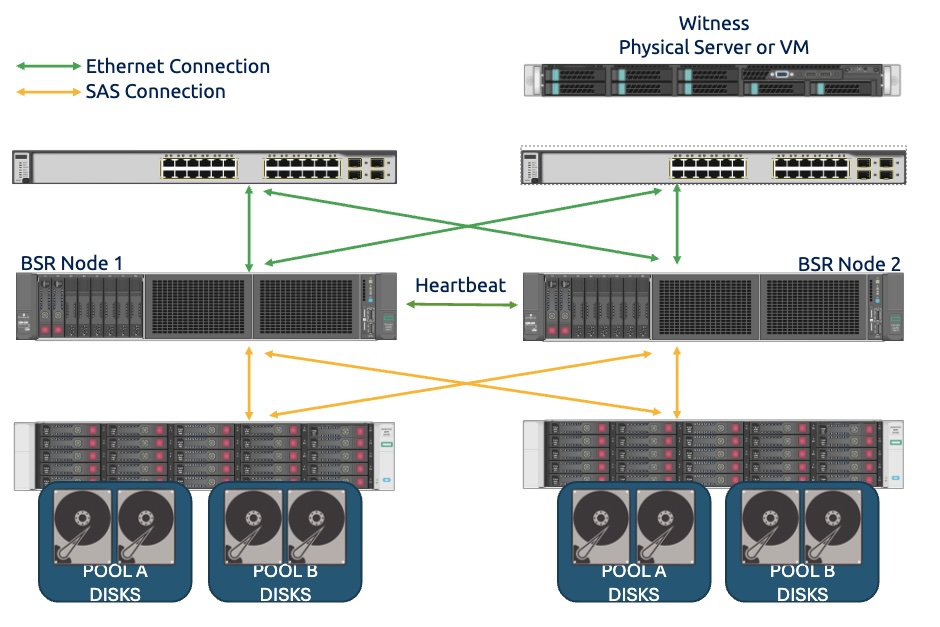

High Availability To guarantee the highest level of data availability, the High Availability (HA) feature leverages an additional storage node to manage the underlying disk. Each storage node already comes built with all redundant hardware such as dual power supplies, multiple CPUs, two or more Host Bus Controllers (HBA), multiple network interfaces and so on. HA provides an additional layer of protection for other unforeseen system faults and zero-impact software upgrades. BrickStor HA nodes operate as active/active so additional performance can be gained depending on the application. Cluster Hardware Configuration High Availability Components A BrickStor High Availability Cluster consists of four main components: BrickStor Head Node – The Head Node is a hardware and software component responsible for managing underlying disk and presenting it as consumable data via SMB, NFS or iSCSI. BrickStor HA configuration consists of two Head Nodes communicating between each other with a shared configuration, system state and leverage a master election process. Both nodes always have identical hardware configurations and operate on the same software version. Some versions are backwards compatible but only during the upgrade process. Please reference the release notes to find an upgrade path. Heartbeat - Heartbeat is a method of Head Nodes communicating their health status. This is typically done over a dedicated network interface directly connecting both nodes. Additionally state is also communicated over the management interface "admin0". During complete loss of the node heartbeat the failover process will take place. RMM/iLO - RMM is Intel’s Remote Management Module and iLO is HPE’s Integrated Lights-Out management facilities for out-of-band server access. Both are proprietary dedicated hardware components embedded on the motherboard to provide hardware management during the lights-out scenarios. BrickStor HA relies on this interface during automated HA failover events to avoid split-brain situations. Split-brain is when heartbeat communications are compromised but both nodes are online and healthy. Witness – The witness is an essential component for leveraging automated failover events. It is used to act as the third party in the quorum to break a tie. A witness is a software component that can either run Windows Server or Linux as virtual machine or a bare metal system. It installs as a lightweight service and communicates with both HA Head Nodes via the management interface. The Witness does not take any part during manual failover initiated by a system administrator nor does it play any role in data presentation. Shared Storage – Shared Storage refers to the underlying physical or virtual disk accessible by both Head Nodes. Physical disk is presented with drive enclosures connected with redundant SAS connections to both nodes. It is highly advised to configure HA solutions with two or more enclosures and configure storage pool(s) with disks split across them. This ensures the solution can survive enclosure failure. Virtual disk refers to block storage volumes presented to BrickStor HA Head Nodes by one or more third-party SAN solution(s). In those cases BrickStor HA is acting as an NFS/SMB protocol server consuming SAN volumes via iSCSI/FibreChannel links. Storage Pool - A Storage Pool is an aggregation of physical or virtual devices describing physical characteristics of the storage system (capacity, performance and data redundancy). The pool is typically defined during system deployment and cannot be changed except to grow it by adding more devices. A given storage system can have one or more storage pools depending on the application. More on the storage pools can be found in Storage Pools section. In an HA configuration only a single Head Node can serve a given pool. The second node would simply wait to take over (failover). Be advised, one should not attempt to import or export pools using the CLI. This will result in data corruption. Always use RackTop supplied utilities such as BrickStor SP Manager. VNIC - A VNIC is a Virtual Network Interface which extends the functionality of a physical network port. VNICs are used by BrickStor HA to facilitate failover having data VNIC(s) float between the HA nodes. Use VNICs conservatively. Unusually large number of VNICs may affect failover times because each one must be reconstituted on failover. Resource Group – A Resource Group is a logical grouping of Storage Pools and one or more VNIC(s). An HA Cluster can have one or more Resource Group and are typically created during solution deployment time. Resource Groups can be modified, disabled, removed or moved between nodes. The following action can result in loss of data availability so use it with caution. Resource Group Pool States A pool within a Resource Group can be in one of five states when managing an HA cluster: Member of a Resource Group – Pool is part of an HA Resource Group and is Enabled. The enabled pool is imported on the specified node and the second node is ready for failover. Disabled Member of Resource Group – The pool is a member of a resource group but is administratively disabled. The disabled pool is exported from both nodes and data is not available. Once the Resource Group is enabled the pool will be imported on the specified HA node. Unmapped Pool – Pool is a member of the HA Cluster but is not assigned into any current Resource Groups. This typically results when the pool is protected from being imported on more than one node at a time or brought over from a foreign HA configuration. In this state the pool is not imported on either nodes and can either be assigned into a Resource Group (new or existing) or destroyed. Removed from Cluster – Pool is not a member of the HA configuration. In this state the pool is not imported on either node and can either be assigned into a Resource Group (new or existing) or destroyed. Missing – The pool devices are not accessible by both HA nodes. This can result from the drives being physically removed from the enclosures, loss of connectivity with a drive enclosures or SAN, or the drives are SED (Secure Encrypted Drive) and are currently locked. Standard Network Interfaces At a minimum an HA configuration requires each node to have at least three physical network interfaces. Management interface can also be referred to as "admin0". It is used for system management and HA communications. Heartbeat interface directly connects each node and is used for exchanging HA communications between the nodes. Data interface is client data access. This interface is typically composed of two or more physical interfaces aggregated together using LACP protocol (IEEE 802.3ad) HA operation relies on the admin0 network interface being present and up. Auto-failover is not possible if the admin0 network interface is down. The data aggregate interfaces should connect to two or more stacked high speed network switches. The HA witness server and RMM/iLO interfaces must reside on the same subnet as the HA management interface.
