About Pools

This in software implementation allows for various parity schemes as well as mirroring configurations. The following are schemes currently supported by RackTop:

The following table explains the pool types that are available in BrickStor:

VDEVs are the building blocks for a pool. A Pool VDEV, also know as a stripe, is a virtual device that can be a single disk, two or more disks that are mirrored, or a group of disks with a parity scheme such as RAID-5. The concept of a VDEV is something that abstracts away some unit of storage, which may or may not have any redundancy.

Pools are groups of virtual devices usually implemented with some data protection scheme, such as RAID or mirroring, on top of which filesystems and raw block devices are provisioned. A typical hybrid pool is a mix of mechanical drives and solid-state drives. In such a pool, data is redundantly stored on large capacity, slower, typically mechanical devices, arranged into a parity scheme that satisfies data protection as well as capacity and IOPS requirements, while high bandwidth, low latency solid state drives are used for the purposes of caching to accelerate reads and for the purposes of handling synchronous writes, enabling a much better cost to performance ratio over traditional purely mechanical, or purely solid state configurations. BrickStor also configures all flash pools, which continue to leverage RAM for cache solid state disks instead of mechanical disks to provide consistently lower latency and higher IOPS.

Pools include special containers that are used for organizing datasets and volumes so that they always reside within the same location within the pool.

Adaptive Replacement Cache (ARC) is a portion of memory in the controller dedicated to caching recently accessed data. The ARC caches both recently written data, with the assumption that this data may be read soon after being written as well as recently read data, with the assumption that this data is potentially going to be read again. Depending on the popularity of data it may remain in the cache for a long time, or be evicted in favor of other data, based on criteria which both the user as well as the system can optimize for.

Optional SSD Cache device that can be used to extend the amount of data that is cached for Read operations. When data is evicted from the ARC it will potentially move to the L2ARC (based up on user configuration settings). Data read from L2ARC will be moved back into ARC.

RackTop uses a journal methodology for its write cache and is implemented in most systems as a mirrored SSD pair. A journal is both a software concept and a core physical component, a write ahead log that is used to reduce latency on storage when synchronous writes are issued by clients. RackTop frequently refers to journal as a ZIL, an intent log or a log device. In synchronous write cases, writes are committed to this journal and periodically pushed to primary storage. Journal guarantees that data is protected from loss on power failure due to being in cache before cache is flushed to stable storage.

A log device is normally only ever written to and never read from. A log device i.e. journal is present to protect the system from unexpected interruptions, such as power loss, a system crash, loss of storage connectivity, etc. In rare instances where recovery is necessary due to power loss or some other catastrophe, journal is read from in order to recreate a consistent state of the pool, which may require rolling back some transactions, but results in restoring the pool to a consistent state, unlike traditional storage systems where only best effort is promised. RackTop recommends mirroring journal devices as a means of preventing loss of a journal device, which has performance and potential availability impact. In all pools configured at the factory prior to system shipping, the journal, if present, will be mirrored.

Resilvering is the process of rebuilding a disk within a VDEV after a drive has been replaced. BrickStor OS does not have an fsck repair tool equivalent, common on Unix filesystems. Instead, the filesystem has a repair tool called "scan" which examines and repairs silent corruption and other problems. Scan can run while the volume is online; scan checks everything, including metadata and the data. This process works from the top down and only writes data to the disk that is needed. If a disk was temporarily offline it would only have to rebuild the data that was missed while the device was offline.

BrickStor uses mirrors and RAID-Z for disk level redundancy within VDEVs.

Compression is performed inline and at the block level. It is transparent to all other layers of the storage system. Each block is compressed independently and all-zero blocks are converted into file holes. To prevent “inflation” of already-compressed or incompressible blocks, BrickStor maintains a 12.5% compression ratio threshold below which blocks are written in uncompressed format. BrickStor supports compression via the LZJB, GZIP (levels 1-9), LZE, and LZ4. RackTop finds that LZ4 works very well, balancing speed and compression performance. It is common to realize a 1.3 to 1.6 compression ratio with highly compressible data which not only optimizes storage density but also improves write performance due to the reduction in disk IO. RackTop recommends always using compression because any CPU penalty is typically outweighed by the savings in storage and bandwidth to the disk.

Deduplication is performed inline and at the block level, also like compression, deduplication is transparent to all other layers of the storage system. For deduplication to work as expected the blocks written to the system must be aligned. Deduplication even when turned off will not reverse the deduplication of blocks already written to the system. This can only be accomplished through copying or moving the data. Deduplication negatively impacts the system performance if data is not significantly duplicative because an extra operation must be done to look if it is a duplicate block for writes and if it is the last block for deletes. Additionally, the deduplication table must be stored in RAM. This takes up space that could otherwise be used for metadata and caching. Should the deduplication not all fit in RAM then system performance will degrade sharply because every read and write operation will require the system to reread the dedup table from disk.

ZFS clones create an active version of a snapshot. By creating a snapshot of a base VM and using clones of that same snapshot you can have an unlimited number of copies of the same base virtual machine without taking up more storage capacity. The only increased storage footprint will come from the deltas or differences between clones. Additionally, since each VM will reference the same set of base data blocks the system and user will benefit from caching since all VM’s will be utilizing the same blocks of data.

If you wish to grow the capacity of a volume by adding another VDEV you should do so by adding a VDEV of equivalent size to the other VDEVs in the pool. If the other VDEVs are already past 90% capacity they will still be slow because data will not automatically balance or spread across all VDEVs after the additional capacity is added. To force a rebalance in a VMware environment you can perform a vmotion or storage migration. With the Copy On Write Characteristics of ZFS, the pool will automatically rebalance across all VDEVs.

A pool can have one or more hot spares to replace a faulted storage device automatically. A spare drive must be configured to become a hot spare.

For bare-metal BrickStor SP installations, it is a best practice to have at least one hot spare for each pool. Additionally, it is good practice to size # of hot spares based on # of drives in the pool.

Virtual machines generally do not benefit from using hot spares and RAID. They primarily rely on the resiliency and performance of the underlying NAS/SAN solution.

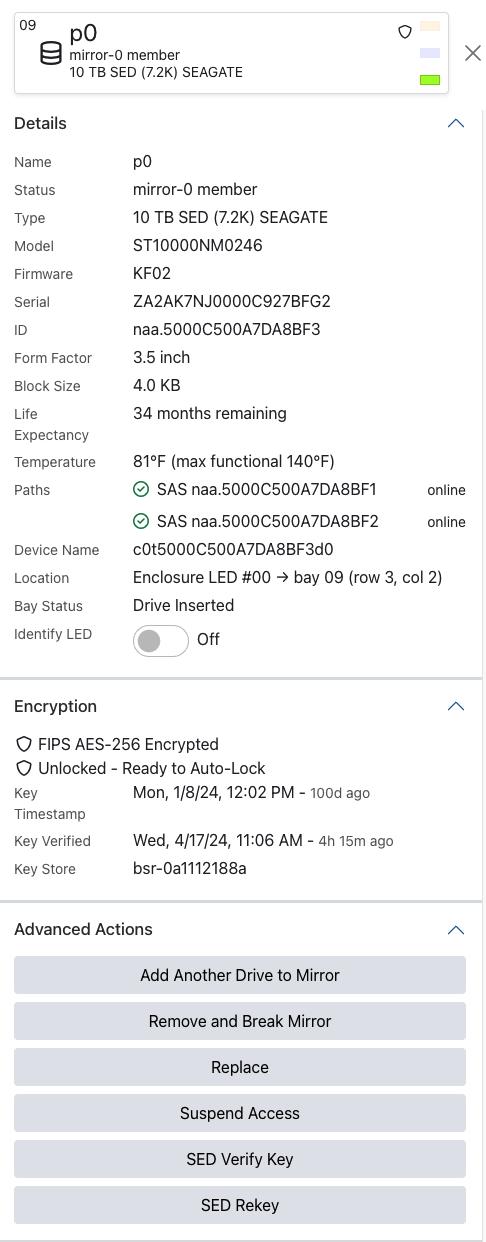

Hub Pool Management page provides a way to create new and administer existing pools.

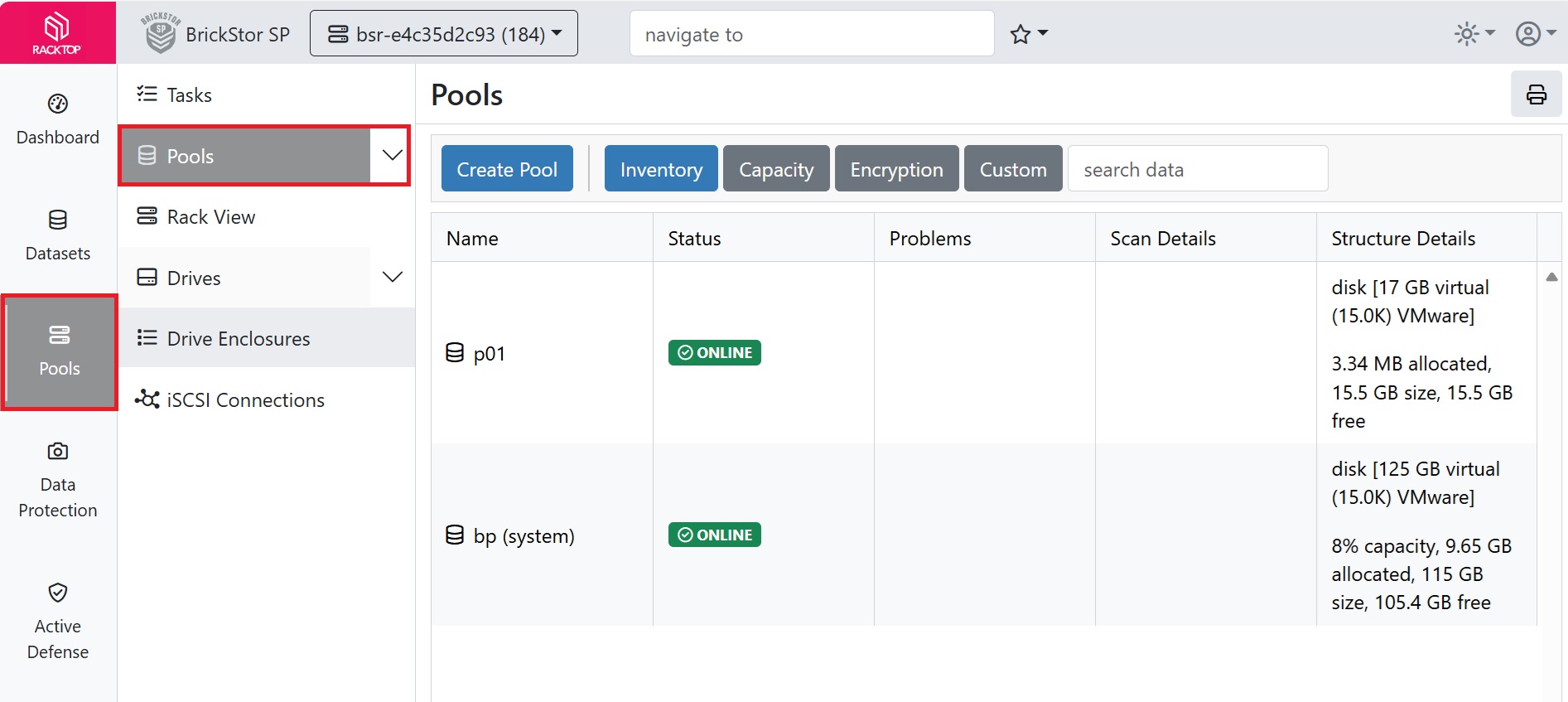

To access Pool Management:
